| Camera |
Image Sensor |
1/3 type 1.3 Megapixel progressive scan MOS Sensor |
| Effective Pixels |
1280 (H) × 960 (V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto / Manual, 1/3 ~ 1/100,000 |
| Min. Illumination |
0.05 lx / F1.2 (Color), 0.025 lx / F1.2 (B/W);0 lx / F1.2 (IR on) |
| S/N Ratio |
More than 50 dB |
| Video Output |
N/A |
| Camera Features |
Max. IR LEDs Length |
30 m |
| Day/Night |
Auto (IR) / Color / B/W |
| Backlight Compensation |
BLC / HLC / WDR |
| White Balance |
Auto/Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D |
| Privacy Masking |
Up to 4 areas |
| Lens |
Focal Length |
3.6 mm |
| Max Aperture |
F1.8 |
| Angle of View |
H: 70° |
| Lens Type |
Fixed lens |
| Video |
Compression |
H.264 / MJPEG |
| Resolution |
1.3 M (1280 × 960) / 720p (1280 × 720) / D1 (704 × 480) / CIF (352 × 240) |
| frame - Rate Stream (1) |
1.3 M / 720p (1 ~ 30fps) |
| frame - Rate Stream (2) |
D1/CIF (1 ~ 30fps) |
| Bit Rate |
H.264: 32K ~ 8192 Kbps |
| Network |
Ethernet |
RJ45 (10/100base-T) |
| Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNM P, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter ,QoS,Bonjour, onvif compatible |
| Max. User Access |
20 users |
| Smart Phone |
iPhone, iPad, Android™ |
| EMS Standard |
EN55022 Class B, EN55024 |
| Power Supply |
DC12 V, PoE (IEEE802.3af) |
| Power Consumption |
Max 5 W |
| Ambient Operating Temperature/Humidity |
-20°C ~ +60°C /Less than 95% RH |
| Water and Dust Resistance |
IP66 |
| Vandal Resistance |
N/A |

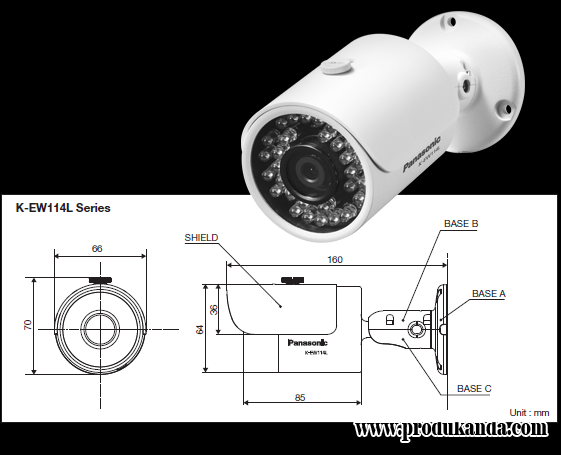

| Dimensions |
70 mm × 66 mm × 160 mm |
| Weight |
0.5 kg |
