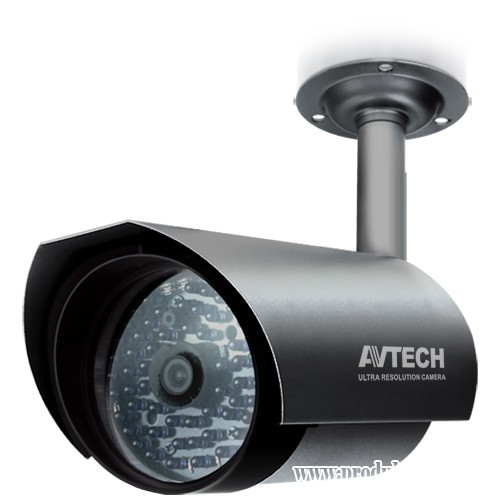

56 IR LEDs IR Camera
(960H Ultra Resolution)
FEATURES
(1) 1/3" Color CCD
(2) 700 TVL superior image quality
(3) Low light sensitivity of 0.05 Lux at F1.4, 0 Lux (IR ON)
(4) IP67 standard approved case
(5) Day and night features for 24-hour surveillance
SPECIFICATIONS*
MODEL AVC169
Pick-up Element 1/3" H.R. Color CCD image sensor
Number of Pixels 976(H) x 494(V) / 976(H) x 582(V)
Resolution 700 TVL
Min. Illumination 0.05 Lux / F1.4; 0 Lux (IR ON)
IR LED 56 units
IR Effective Range Up to 40 meters
S/N Ratio More than 48dB (AGC OFF)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec.
Lens f6.0mm / F1.4
Lens Angle 56.6° (Diagonal) / 46.6° (Horizontal) / 34.8° (Vertical)
IRIS Mode AES
White Balance ATW
AGC Auto
IP Rating IP67
Video Output 1.0 Vp-p composite, 75Ω
Startup Temperature 0℃~40℃
Operating Temperature -20℃~40℃
Power Source (±10%) DC12V
Current Consumption (±10%) 70mA (IR OFF), 590mA (IR ON)
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
