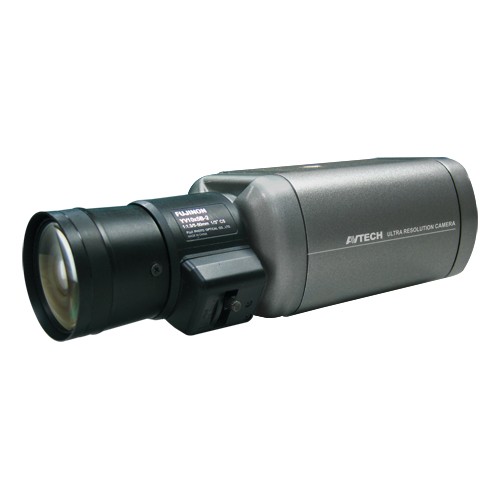

Regular Camera
(960H Ultra Resolution)
FEATURES
(1) 1/3" HR Color CCD
(2) 700 TVL superior image quality
(3) OSD menu for advanced settings
SPECIFICATIONS
MODEL AVC151
Pick up Element 1/3" HR color CCD image sensor
Number of Pixel 976(H) x 494(V) / 976(H) x 582(V)
Resolution 700 TVL
Minimum Illumination 0.1 Lux / F2.0
S/N Ratio More than 48dB (AGC off)
Electronic Shutter
AUTO: 1/50 (60) to 1/100,000 sec.
MANUAL: 1/50(60), FL 1/120(100), 1/250, 1/500, 1/1,000,1/2,000,
1/5,000, 1/10,000,1/20,000, 1/50,000, 1/10,0000 sec.
Lens Mount CS Mount
IRIS Mode AES / VD / DD
White Balance AUTO / Fixed
Auto Gain Control AGC / Fixed
Sharpness Adjustable
BLC ON / OFF
Digital WDR YES
Multilingual OSD Menu YES
Video Output 1.0 Vp-p composite, 75Ω
Microphone Built-in
Power Source (±10%) DC 12V
Current Consumption(±10%) 70mA
Dimensions (mm)** 117(L) x 60(W) x 50(H)
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
*Lens Optional
