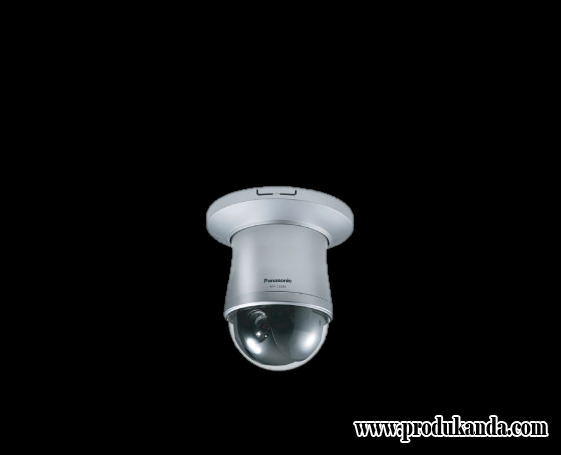

WV-CS580 Series
| Camera | Image Sensor | 1/4 type interline transfer CCD | |
| Effective Pixels | NTSC | 976 (H) x 494 (V) | |
| PAL | 976 (H) x 582 (V) | ||
| Scanning Mode | 2:1 interlace | ||
| Scanning Area | NTSC | 3.66 mm(H) x 2.74 mm (V) (5/32"(H) x 3/32"(V)) | |
| PAL | 3.66 mm(H) x 2.73 mm (V) (5/32"(H) x 3/32"(V)) | ||
| Scanning Frequency | NTSC | Horizontal: 15.734 kHz Vertical: 59.94 Hz | |
| PAL | Horizontal: 15.625 kHz Vertical: 50 Hz | ||
| Horizontal Resolution | 650 TV lines | ||
| Minimum Illumination | Color (30 IRE): | 0.5 lx (SENS UP: OFF), 0.016 lx (SENS UP: 32x) at F1.4 | |
| B/W (10 IRE): | 0.04 lx (SENS UP: OFF), 0.0013 lx (SENS UP: 32x) at F1.4 | ||
| Signal-to-Noise Ratio | 52 dB minimum (AGC: OFF) | ||
| White Balance | AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 8,000 K), ATW2 (2,400 ~ 8,000 K) | ||
| Light Control | ALC (Adjustable OPEN/CLOSE output target level) / MANUAL | ||
| AGC | ON (LOW, MID, HIGH) / OFF | ||
| Super Dynamic 6 | ON / OFF | ||
| Dynamic Range | NTSC | 52 dB typical (Super Dynamic 6 : ON) | |
| PAL | 54 dB typical (Super Dynamic 6 : ON) | ||
| Electronic Shutter | NTSC | OFF (1/60), AUTO, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 | |
| PAL | OFF (1/50), AUTO, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 | ||
| Electronic Sensitivity UP | 32x max. AUTO, 512x max. FIX | ||
| Digital Noise Reduction | High or Low | ||
| Black and White Mode | Auto / ON / OFF | ||
| Scene File | 10 patterns (Shutter, AGC, Sens UP, White balance, VMD) | ||
| Scene select Setting | INDOOR (L) / INDOOR (H) / OUTDOOR (L) / OUTDOOR (H) | ||
| Video Motion Detection | OFF / MOTION DET / SCENE CHANGE | ||
| Privacy Zone | ON / OFF (8 zone settings) | ||
| Auto Image Stabilizer | ON / OFF | ||
| Camera Title | 16 alphanumeric characters | ||
| Auto Focus | MANUAL / AUTO (PAN,TILT,ZOOM linked) | ||
| Synchronization | NTSC | Internal (INT), Multiplexed Vertical Drive (VD2) | |
| PAL | Internal (INT) | ||
| Lens | Focal Length | 3.3 mm ~ 119 mm | |
| Zoom Ration | 36x (Approx. 720x with digital zoom) | ||
| Zoom Speed | approx. 6.0 seconds (Tele ~ Wide) in manual mode | ||
| Zoom Limit | 1x ~ 720x (Over 36x is digital zoom) | ||
| Angular Field of View | H: 1.7° (Tele) ~ 60.2° (Wide), V: 1.3° (Tele) ~ 46.0° (Wide) | ||
| Maximum Aperture Ratio | 1:1.4 (Wide) ~ 4.2 (Tele) | ||
| Focusing Range | 1.8m (5.9ft.) ~ ∞ | ||
| Aperture Range | F1.4 ~ 22, Close | ||
| Pan and Tilt | Panning Range | 360° endless | |
| Panning Speed *1 | Manual: | approx. 0.065 °/s ~ 120 °/s, 8 steps, 16 steps, 64 steps | |
| Preset: | approx. 400 °/s | ||
| Tilting Range | –5° ~ 185° (horizontal - vertical - horizontal) (According to the TILT ANGLE) | ||
| Tilting Speed *1 | Manual: | approx. 0.065 °/s ~ 120 °/s, 8 steps, 16 steps, 64 steps | |
| Preset: | approx. 400 °/s | ||
| Proportional Pan/Tilt Control | ON / OFF | ||
| Number of Preset Positions | 256 | ||
| Auto Mode | OFF, SEQ, SORT, AUTO PAN, PATROL, AUTO TRACK | ||
| Auto Track | Standard Auto Track | ||
| Patrol | STOP / PLAY / LEARN | ||
| Image Hold | ON / OFF | ||
| Digital Flip | ON / OFF | ||
| Area Title | 8 area titles, 16 characters/area | ||
| Preset Alarm | ON / OFF | ||
| Alarm | Alarm Source | Terminal input, VMD, Command alarm | |
| Alarm Actions | Preset position 1 ~ 4, PATROL 1 ~ 4, AUTO TRACK 1 ~ 4, SEQ, SORT, AUTO PAN, B/W | ||
| Input / Output | Video Output | NTSC | 1.0 V [p-p] / NTSC composite 75 / BNC Connector |
| PAL | 1.0 V [p-p] / PAL composite 75 / BNC Connector | ||
| Controller Interface | Coaxial Multiplex System, RS485 | ||
| External I/O Terminals | 4 inputs (ALARM IN 1 ~ ALARM IN 4), 2 outputs (ALARM / AUX1, BW / AUX2) | ||
| General | Setup Method | OSD setup menu | |
| Password Lock | All menus | ||
| Language | English, Russian, German, French, Italian, Spanish, Portuguese, Chinese, Japanese | ||
| Safety/EMC Standard | NTSC | UL (6500),FCC (Part15 ClassA), C-UL (E60065) | |
| PAL | CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558) | ||
| Power Source and Power Consumption | NTSC | 24 V AC, 60Hz, 4.3W | |
| PAL | WV-CS580: 220-240 V AC, 50Hz, 4.6W WV-CS584: 24V AC, 50Hz, 4.3W |
||
| Ambient Operating Temperature | –10 °C ~ +50 °C (14 °F ~ 122 °F) *2 | ||
| Ambient Operating Humidity | 90 % or less (without condensation) | ||
| Dimensions | ø135 x 202 mm (H) (ø5-3/8" x 8") | ||
| Mass (approx.) | 1.7 kg (including Decorative Cover) | ||
| NOTE | *1 Actual speed depends on type of controller being used. *2 When power is on continuously (however, the camera&s interior temperature is -10 °C or higher) |
||
