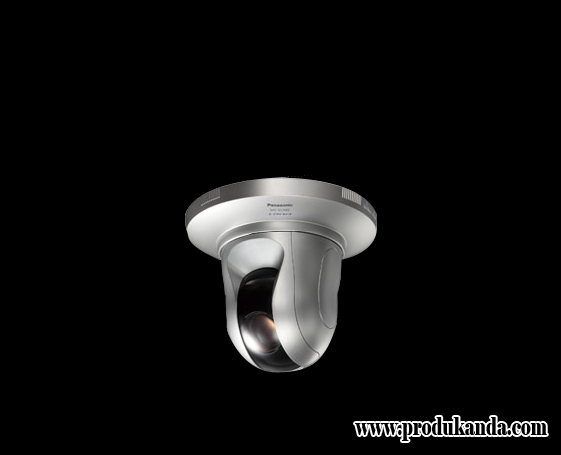

WV-SC384
| Camera | Image Sensor | 1/3 type MOS Sensor | |
| Effective Pixels | Approx. 1.3 megapixel | ||
| Scanning Mode | Progressive scan | ||
| Scanning Area | 4.8 mm (H) x 3.6 mm (V) (3/16" (H) × 5/32" (V)) | ||
| Minimum Illumination | Color: 0.6 lx (F1.6, Auto slow shutter: Off (1/30 s), AGC: High, WDR Off) 0.038 lx (F1.6, Auto slow shutter: max. 16/30 s, AGC: High, WDR Off) BW: 0.5 lx (F1.6, Auto slow shutter: Off (1/30 s), AGC: High) 0.031 lx (F1.6, Auto slow shutter: max. 16/30 s, AGC: High) |
||
| White Balance | ATW1 / ATW2 / AWC | ||
| Light Control Mode | Indoor scene (50 Hz / 60 Hz) / Outdoor scene / Fix shutter | ||
| Shutter Speed | 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 | ||
| Wide Dynamic Range | ON / OFF | ||
| Face Wide Dynamic Range | ON / OFF | ||
| Adaptive Black Stretch | ON / OFF | ||
| AGC | ON (LOW, MID, HIGH ) / OFF | ||
| Auto Slow Shutter | OFF (1/30 s), max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s | ||
| Simple Black and White Mode | OFF / AUTO | ||
| Digital Noise Reduction | High / Low | ||
| Video Motion Detection | ON / OFF, 4 areas available | ||
| Privacy Zone | ON / OFF (up to 2 zones available) | ||
| Up Side Down | Ceiling mount only | ||
| Image Stabilizer | ON / OFF | ||
| Camera Title (OSD) | ON / OFF | ||
| Lens | Focal Length | 4.7 mm ~ 84.6 mm | |
| Zoom Ratio | 18x / 36x with extra optical zoom (at VGA resolution) | ||
| Digital (Electronic) Zoom | 8x (Max. 288x combined with extra optical zoom under VGA) | ||
| Angular Field of View | H: 3.2° (Tele) ~ 55.2° (Wide), V: 2.4° (Tele) ~ 42.1° (Wide) | ||
| Maximum Aperture Ratio | 1 : 1.6 (Wide) ~ 2.8 (Tele) | ||
| Focus Range | 1.5 m ~ ∞ | ||
| Aperture Range | F1.6 ~ 22, Close | ||
| Pan and Tilt | Panning Range | 0° ~ 350° | |
| Panning Speed | Manual: approx. 0.5°/s ~ 100°/s, Preset: up to approx. 300°/s | ||
| Tilting Range | –30° ~ 90° (upward-level-downward) Tilting angle limit: 10° / 5° / 3° / 0° / –3° / –5° / –10° / –15° / –20° / –25° / –30° |
||
| Tilting Speed | Manual: approx.0.5°/s ~ 100°/s, Preset: up to approx. 100°/s | ||
| Proportional Pan/Tilt Control | Yes | ||
| Number of Preset Positions | 64 | ||
| Auto Mode | Auto pan / Preset sequence / 360 map-shot / Preset map-shot | ||
| Image Hold | ON / OFF | ||
| PTZ Position Display | ON / OFF | ||
| Self Return | 10 s / 20 s / 30 s / 1 min / 2 min / 3 min / 5 min / 10 min / 20 min / 30 min / 60 min | ||
| Pan/tilt flip*1 | ON / OFF | ||
| Map Shot | 360 map shot / preset map shot | ||
| Browser GUI | Camera Control | Pan/Tilt (16 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode | |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. | ||
| Camera Title | Up to 20 characters (alphanumeric characters, marks), Character size: Small | ||
| Clock Display | Time: 12H / 24H, Date: 5 formats on the browser, Summer time (Manual/AUTO) | ||
| Alarm Control | Reset | ||
| One Shot Capture | A still picture will be displayed on a newly opened window. | ||
| Audio | Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High, Audio Output: ON / OFF Volume adjustment: Low / Middle / High |
||
| SD Memory Data Download | Still or motion images recorded in the SDHC/SD memory card can be downloaded. | ||
| GUI/Setup Menu Language | NTSC: English, French (Installation required for French) PAL: English, French, Italian, Spanish, German, Russian (Installation required except for English) |
||
| System Log | Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG.) error logs | ||
| Supported OS | Microsoft® Windows® 7 Professional 64 bit/32 bit, Microsoft® Windows Vista® Business SP1 32 bit, Microsoft® Windows® XP Professional SP3 The language of the OS must be same as selected GUI language. |
||
| Supported Browser | Windows® Internet Explorer® 8.0 (32 bit) (Microsoft® Windows® 7 Professional 64 bit/32 bit), Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business SP1 32 bit), Microsoft® Internet Explorer® 6.0 SP3 (Microsoft® Windows® XP Professional SP3) |
||
| Network | Network IF | 10base-T / 100base-TX, RJ-45 connector | |
| Image Resolution*2 *3 | Aspect ratio: [4 : 3] | H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps MPEG-4: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps JPEG (MJPEG): 1,280 x 960 / 640 x 480 / 320 x 240, up to 30 fps |
|
| Aspect ratio: [16 : 9] | H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps |
||
| H.264/MPEG-4*2 | Transmission Mode | Constant bitrate / framerate priority / Best effort | |
| frame Rate | NTSC: 1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 fps PAL: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps |
||
| Bit Rate/Client | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192* kbps / Unlimited * H.264 mode Only | ||
| Image Quality | LOW / NORMAL / FINE | ||
| Refresh Interval | 0.2 s / 0.25 s / 0.33 s / 0.5 s / 1 s / 2 s / 3 s / 4 s / 5 s | ||
| Transmission Type | UNICAST / MULTICAST | ||
| JPEG (MJPEG) | Image Quality | 0 SUPER FINE / 1 FINE / 2 / 3 / 4 / 5 NORMAL / 6 / 7 / 8 / 9 LOW (10 steps: 0-9) | |
| Transmission Type | PULL / PUSH | ||
| Transmission Interval | 0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264/MPEG-4 images.) | ||
| Audio Compression | G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps | ||
| Audio Mode | OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) | ||
| Authentication for Audio | Level 1 only / Level 2 higher / All users | ||
| Total Bit Rate | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited | ||
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6 IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP |
||
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDHC/SD memory card is available.) | ||
| Multi-Screen | Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) | ||
| Maximum Concurrent Access Number | Up to 14 (Depends on network conditions) | ||
| SDHC/SD Memory Card (Option) | H.264 recording: Manual REC / Alarm REC (PRE/Post) / Schedule REC JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure Compatible SD (SDHC) card: Panasonic 256 MB, 512MB, 1GB, 2 GB, 4 GB*, 8 GB*, 16GB*, 32GB* model *SDHC card |
||
| Face Detection | ON / OFF (with XML notification ) | ||
| Cellular Phone Compatibility | JPEG image, panning / tilting / zoom control, AUX control (by access level) | ||
| Alarm | Alarm Source | 3x Terminal inputs, VMD, Command alarm | |
| Alarm Actions | SD memory recording, E-mail notification, Indication on browser, Camera positioning, Preset position 1 ~ 64, FTP image transfer, Terminal output, Panasonic protocol output | ||
| Alarm Log | With SD memory card: 5,000 logs, Without SD memory card: 1,000 logs | ||
| Schedule | Alarm/VMD/Access permission, Preset position call, Position refresh, H.264 recording | ||
| Input / Output | Monitor Output (for adjustment) | NTSC: 1.0 V [p-p] / 75, NTSC composite, ø3.5 mm mini jack PAL: 1.0 V [p-p] / 75, PAL composite, ø3.5 mm mini jack |
|
| Microphone/Line Input | ø3.5 mm monaural mini jack, Input impedance: approx. 2 kΩ | ||
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Line level Output impedance: Approx. 600 Ω, Line level |
||
| External I/O Terminals | ALARM IN 1, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT (x1 each) | ||
| General | Safety/EMC Standard | NTSC: UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA) PAL: CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558) |
|
| Power Source/Consumption | 12 V DC, PoE (IEEE802.3af compliant) 12 V DC : 690 mA, PoE 48 V : 10 W / 190 mA (Class 0 device) |
||
| Ambient Operating Temperature/Humidity | –10 °C ~ +50 °C (14 °F ~ 122 °F), 90% or less (whitout condensation) | ||
| Dimensions | ø115 mm x 155 mm (H) (ø4-17/32" x 6-3/32" (H)) (excluding the 12 V DC power cord plug) | ||
| Mass (approx.) | 900 g (1.99 lbs.) | ||
| NOTE | *1 The pan/tilt-flip function cannot be activated by clicking live images. When the zoom ratio is adjusted to the "TELE" side, images will be partially hidden even if the pan/tilt-flip function is activated. *2 H.264 and MPEG-4 are alternative. *3 [4 : 3] and [16 : 9] are alternative. |
||
