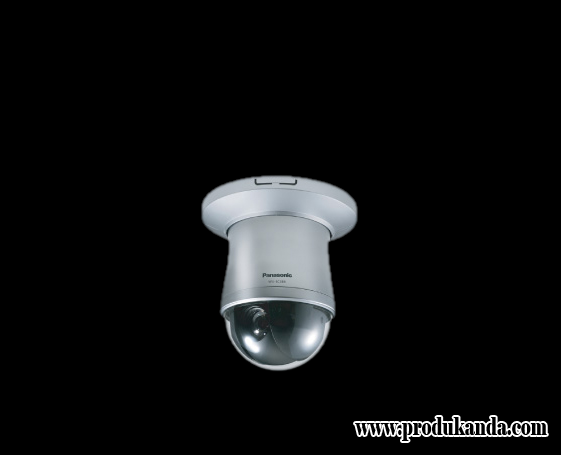

WV-SC386
| Camera | Image Sensor | 1/3 type MOS Sensor | |
| Effective Pixels | Approx. 1.3 megapixel | ||
| Scanning Mode | Progressive scan | ||
| Scanning Area | 3.6 mm (H) x 2.7 mm (V) {5/32 inches (H) × 11/100 inches (V)} | ||
| Minimum Illumination | Color: 0.5 lx, B/W: 0.06 lx at F1.6 (Shutter: 1/30 s, AGC: High), Color: 0.031 lx, B/W: 0.004 lx at F1.6 (Shutter: 16/30 s, AGC: High) |
||
| White Balance | AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K) | ||
| Light Control Mode | Indoor scene (50 Hz / 60 Hz) / Outdoor scene / Fix shutter | ||
| Shutter Speed | Fix shutter: OFF (1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 | ||
| Super Dynamic | ON / OFF | ||
| Face Super Dynamic | ON / OFF (only at Super Dynamic: ON) | ||
| Dynamic Range | 52 dB typical (Super Dynamic: ON, Light Control mode: Indoor) | ||
| Adaptive Black Stretch | ON / OFF | ||
| AGC | ON (LOW, MID, HIGH ) / OFF | ||
| Electronic Sensitivity UP | OFF, max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s | ||
| Black and White Mode | Mode: AUTO1 / AUTO2 / AUTO3 / ON / OFF, Level: High / Low, with external control | ||
| Digital Noise Reduction | High / Low | ||
| Video Motion Detection | 4 areas, Sensitivity: 15 steps, Detection size: 10 steps | ||
| Privacy Zone | Up to 8 zones, Gray / Mosaic | ||
| Auto Image Stabilizer | ON / OFF | ||
| Camera Title (OSD) | Up to 20 alphanumeric characters (3 selectable character sizes) | ||
| Lens | Focal Length | 3.3 mm ~ 119 mm | |
| Zoom Ratio | 36x / 72x with extra optical zoom (at VGA) | ||
| Digital (Electronic) Zoom | 12x (Max. 864x combined with extra optical zoom at VGA) | ||
| Angular Field of View | H: 1.7° (Tele) ~ 60.2° (Wide), V: 1.3° (Tele) ~ 46.0° (Wide) | ||
| Maximum Aperture Ratio | 1 : 1.4 (Wide) ~ 4.8 (Tele) | ||
| Focusing Range | 2.0 m ~ ∞ | ||
| Aperture Range | F1.4 ~ 22, Close | ||
| Pan and Tilt | Panning Range | 360° endless | |
| Panning Speed | Manual: approx. 0.065°/s ~ 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx. 400°/s |
||
| Tilting Range | –15° ~ 185° (upward-level-downward) Tilting angle limit: 10° / 5° / 3° / 0° / –3° / –5° / –10° / –15° |
||
| Tilting Speed | Manual: approx.0.065°/s ~ 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx. 400°/s |
||
| Proportional Pan/Tilt Control | Yes | ||
| Number of Preset Positions | 256 | ||
| Auto Mode | preset sequence / auto pan / auto track / patrol | ||
| Image Hold | ON / OFF | ||
| PTZ Position Display | ON / OFF | ||
| Self Return | 10 s / 20 s / 30 s / 1 min / 2 min / 3 min / 5 min / 10 min / 20 min / 30 min / 60 min | ||
| Map Shot | 360° map shot / preset map shot | ||
| Browser GUI | Camera Control | Pan/Tilt (16 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode | |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. | ||
| Camera Title | Up to 20 alphanumeric characters | ||
| Clock Display | Time: 12H / 24H, Date: 5 formats on the browser, Summer time (Manual/AUTO) | ||
| Alarm Control | Reset | ||
| One Shot Capture | A still picture will be displayed on a newly opened window. | ||
| Audio | Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High, Audio Output: ON / OFF Volume adjustment: Low / Middle / High |
||
| SD Memory Data Download | Still or motion images recorded in the SDHC/SD memory card can be downloaded. | ||
| GUI/Setup Menu Language | NTSC : English, French (Installation required for French) PAL : English, French, Italian, Spanish, German, Russian (Installation required except for English) |
||
| System Log | Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG.) error logs | ||
| Supported OS *1 | Microsoft® Windows® 7 Microsoft® Windows Vista® Microsoft® Windows® XP SP3 |
||
| Supported Browser | Windows® Internet Explorer® 9.0 (32 bit) Windows® Internet Explorer® 8.0 (32 bit) Windows® Internet Explorer® 7.0 (32 bit) Microsoft® Internet Explorer® 6.0 SP3 |
||
| Network | Network IF | 10base-T / 100base-TX, RJ-45 connector | |
| Image Resolution *2 *3 | Aspect ratio: [4 : 3] | H.264: 1,280 × 960 / 800 × 600 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps MPEG-4: VGA (640 × 480) / QVGA (320 × 240), up to 30 fps JPEG (MJPEG): 1,280 × 960 / 800 × 600 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps |
|
| Aspect ratio: [16 : 9] | H.264: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps JPEG (MJPEG): 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps |
||
| H.264/MPEG-4*2 | (Transmission Mode) | Constant bitrate / framerate priority / Best effort | |
| (frame Rate) | NTSC: 1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 fps PAL: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps |
||
| (Bit Rate/Client) | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192* kbps / Unlimited * H.264 mode only | ||
| (Image Quality) | LOW / NORMAL / FINE | ||
| (Refresh Interval) | 0.2 s / 0.25 s / 0.33 s / 0.5 s / 1 s / 2 s / 3 s / 4 s / 5 s | ||
| (Transmission Type) | UNICAST / MULTICAST | ||
| JPEG (MJPEG) | (Image Quality) | 10 steps | |
| (Transmission Type) | PULL / PUSH | ||
| Audio Compression | G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps | ||
| Audio Mode | OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) | ||
| Authentication for Audio | Level 1 only / Level 2 higher / All users | ||
| Total Bit Rate | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited | ||
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6 IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP | ||
| FTP Client | Alarm image transfer, Periodic image transfer (When the FTP periodic transmission is failed, backup on an optional SDHC/SD memory card is available.) | ||
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) | ||
| SDHC/SD Memory Card (Option) | H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure Compatible SD (SDHC) card: Panasonic 256 MB, 512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model * SDHC card |
||
| Face Detection | ON / OFF (with XML notification) | ||
| Cellular Phone Compatibility | JPEG image, panning/tilting/zoom control, AUX control (by access level) | ||
| Alarm | Alarm Source | 3x Terminal inputs, VMD, Command alarm | |
| Alarm Actions | SD memory recording, E-mail notification, Indication on browser, Camera positioning, Preset position 1 ~ 64, FTP image transfer, Terminal output, Panasonic protocol output, Auto track | ||
| Alarm Log | With SD memory card: 5,000 logs, Without SD memory card: 1,000 logs | ||
| Schedule | Alarm/VMD/Access permission, Preset position call, Position refresh, H.264 recording | ||
| Input / Output | Monitor Output (for adjustment) | NTSC : 1.0 V [P-P] / 75 Ω, NTSC composite, BNC PAL : 1.0 V [P-P] / 75 Ω, PAL composite, BNC |
|
| Microphone/Line Input | MIC IN and Line IN are selectable. ø3.5 mm monaural mini jack (Applicable microphone: Plug-in power type), Supply voltage: 2.5 V ±0.5 V, Input impedance: approx. 2 kΩ |
||
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Line level | ||
| External I/O Terminals | ALARM IN 1 / DAY/NIGHT IN, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT (x1 each) | ||
| General | Safety/EMC Standard | NTSC: UL (UL60950-1), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60950-1), DOC (ICES003 ClassA) PAL: CE (EN55022 ClassB, EN55024) |
|
| Power Source/Consumption | 12 V DC: approx. 1A PoE: approx. 48 V 250 mA (IEEE802.3af compliant, Class 0 device) |
||
| Ambient Operating Temperature/Humidity | –10 °C ~ +50 °C (14 °F ~ 122 °F), 90 % or less (without condensation) | ||
| Dimensions | ø135 x 196 mm (H) (ø5-31/100" x 7-18/25") | ||
| Mass (approx.) | Camera: 1.2kg (2.65 lbs) Accessories (Camera mount bracket, decorative cover): Approx. 200 g {0.44 lbs} |
||
| NOTE | *1 Microsoft Windows 7 Starter, Microsoft Windows Vista Starter and Microsoft Windows XP Professional 64-bit Edition are not supported. *2 H.264 and MPEG-4 are alternative. *3 [4 : 3] and [16 : 9] are alternative. |
||
