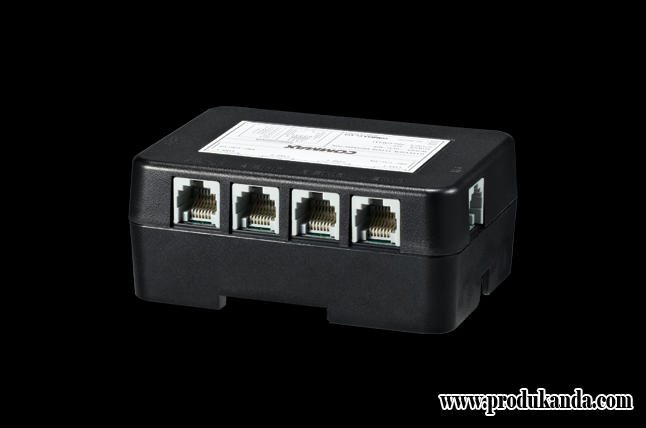

FEATURES
-
CCU-4GF enables easy wiring by allowing direct connections from the device to Gate View monitors, eliminating inchin-outinch(BUS wiring method) connection processes
FUNCTION
Enables "STAR" wiring method for
Gate View monitor connections
CCU-4GF-to-CCU-4GF enabled to
expand up to 40 units limited to
300 meters
1 unit supports 4 connections
SPECIFICATION
- Power
- DC 12V 80mA
- Mount type
- Surface-mounted type
- Transmission
- Lobby 8 Lines(Polarity) (RJ45 CAT.5e Patch Cable)
- Distance
- Maximum 300m (Possible to connect Max 40 units)
- Dimension(mm)
- 106(W)×76(H)×44(D)

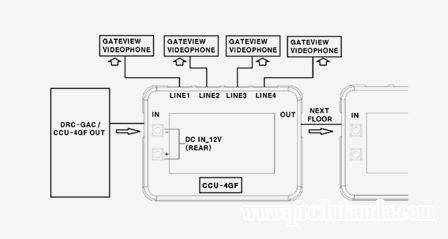

WIRING
CAUTIONS FOR INSTALLATION
