FEATURES
-

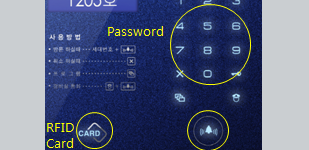

VARIOUS ACCESS ConTROL METHODS
Various access control methods, such as password verification, RFID card, and integrated identification control with security guard station, are provided.
-
THE WORLD’S FIRST TEMPERED GLASS
Vivid resolution display with tempered glass application and clear and waterproof surface with AF(Anti-fingerprinting)application.
-

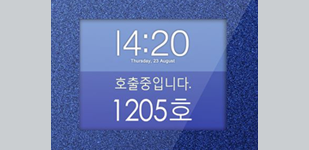

3.5 INCH LCD
3.5 inch LCD panel with user-friendly GUI.
FUNCTION
- 3.5 inch LCD display
- Page and call a household unit or a security guard station
- Various verification methods (Password and RFID card)
- Expandable up to 99 units of DRC-703 LC /RF1
- White, blue, gold available
- Mirror view of a visitor enabled when paging
- Reguires one technician for the system setup
SPECIFICATION
- Power source
- DC 12V/1A
- Power consumption
- Standby : 200mA Maximum: 450mA
- Wiring
- UTP(Cat. 5e)
- Angle of view
- Horizontal : 68° Vertical: 55°
- RFID card
- 13.56Mhz (Optional)
- Dimension(mm)
- 244(W)x270(H)x17(43)(D)

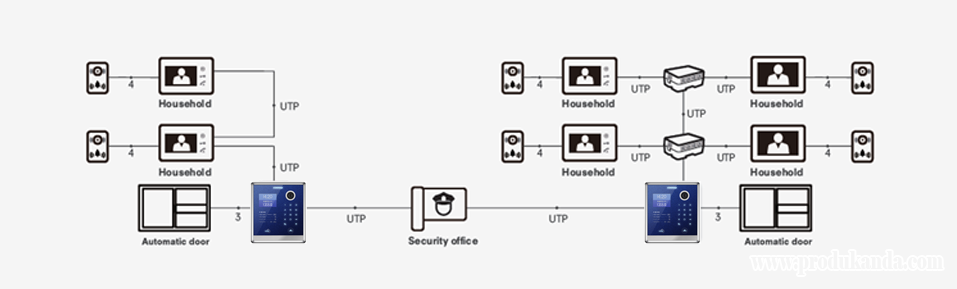

WIRING DIAGRAM
