FEATURES
-
OPTIMIZED FUNCTION
Name search function, and expandable up to 4 lobby phones. Register up to 3 RFID cards per household.
-
SMART BLUE

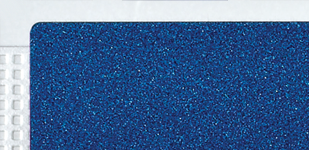

Create luxurious atmosphere with COMMAX smart blue color.
-
CONVENIENT

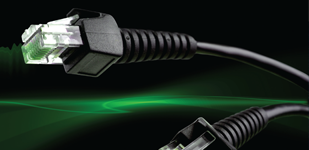

It enables video, audio, and data communication via one UTP cable to simplify the installation.
FUNCTION
- Paging and calling a household unit or a security guard station

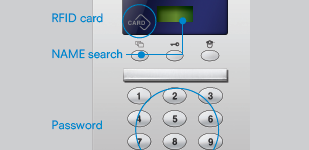

- Various verification methods(password and RFID card)
SPECIFICATION
- Power source
- DC 12V, 1A
- Power consumption
- Standby: 400mA, Maximum: 500mA
- Mount type
- Built-in(Flush-mounted type)
- Operating temp.
- -10℃~+40℃
- Wiring
- UTP(Cat. 5e)
- Distance
- Max. 300m(VD-103(N))
- RFID card
- 13.56MHz(Optional)
- Image sensor
- Color C-MOS 1/4inch
- Angle of view
- Horizontal: 68°, Vertical: 55°
- Min. Illumination
- 0.1 Lux(Up to 300mm from camera to an object)
- Lighting
- Color: white LED x 2
- Dimension(mm)
- 130(W)×315(H)×10(38)(D)

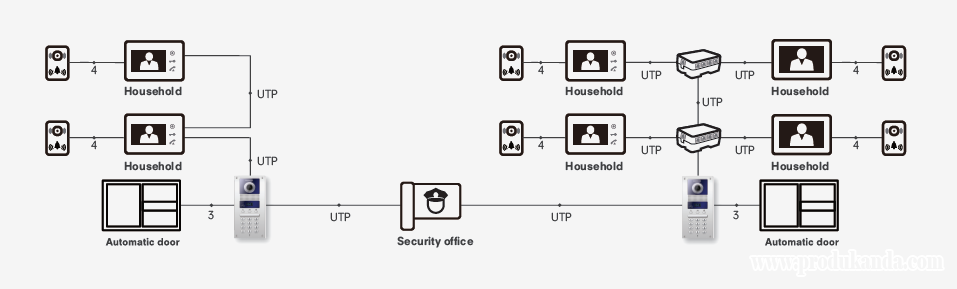

WIRING DIAGRAM
ACCESSORY
| ACCESSORY | CONTENTS | QUANTITY(EA) |
|---|---|---|
| Connector | CONN. 3P×200mm CONN. 4P×200mm CONN. 8P×200mm CONN. 3P×250mm CONN. 4P×250mm CONN. 8P×250mm |
1 1 2 1 1 2 |
| Product fixing screw | FHM(Wrench) 4×40/SUS(Ni) | 4 |
