FEATURES
-
INTUITIVE ConTROL PANEL
User-friendly design and sensible circle control panel application
-

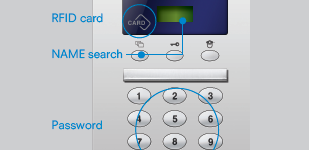

ENHANCED SECURITY
A doubled security check enhances existing systems. An access control via password and RFID card provide more enhanced security environment
-

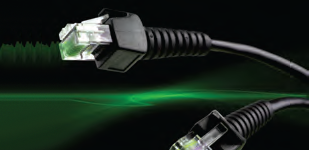

ConVENIENT INSTALLATION
It enables video, audio, and data communication via one UTP cable to simplify the installation
FUNCTION
- Calling visitors and releasing door lock (public entrance, individual entrance)
- Releasing door lock(public entrance, individual entrance)
- Paging and calling a security guard station
SPECIFICATION
- Power source
- AC 100-240V, 50/60Hz
- Power consumption
- Maximum: 4W
- Mount type
- Surface-mounted type
- Operating temp.
- 0℃~40℃
- Wiring
- Common: UTP(Cat. 5e) Door unit: 3 wire
- Distance
- Lobby phone: 300m Guard station phone: 1Km
- Dimension(mm)
- 108(W)×210(H)×33(D)

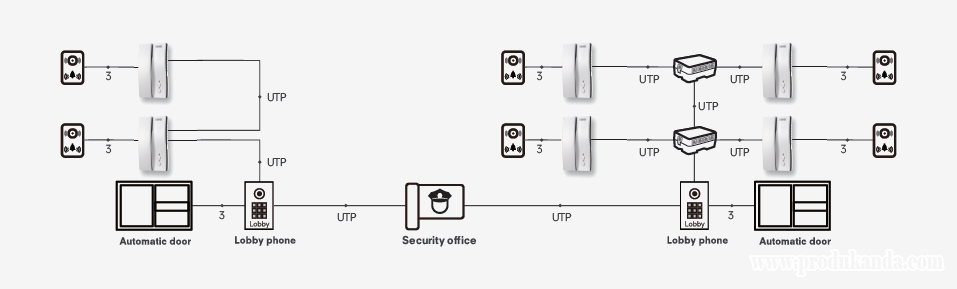

WIRING DIAGRAM
