FEATURES
-

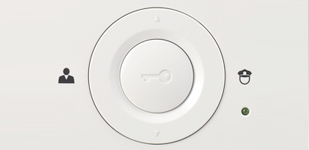

INTUITIVE CONTROL
User-friendly design and sensible circle control panel application
-

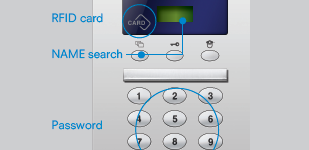

ENHANCED SECURITY
A doubled security check enhances existing systems. An access control via password and RFID card provide more enhanced security environment
-

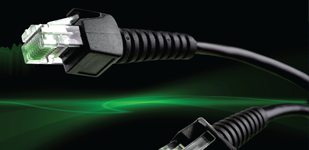

CONVENIENT
It enables video, audio, and data communication via one UTP cable to simplify the installation
FUNCTION
- Monitoring & calling visitors, and releasing door lock (public entrance, individual entrance)
- Releasing door lock(public entrance, individual entrance)
- Paging and calling a security guard station
- Handset
SPECIFICATION
- Power source
- AC 100-240V, 50/60Hz
- Power consumption
- Maximum: 6.5W
- LCD size
- 3.5 inch wide color LCD
- Mount type
- Surface-mounted type
- Operating temp.
- 0℃~40℃
- Wiring
- Common: UTP(Cat. 5e) Door camera: 4 wire
- Distance
- Lobby phone: 300m Guard station phone: 1Km
- Dimension(mm)
- 192(W)×195(H)×31(D)

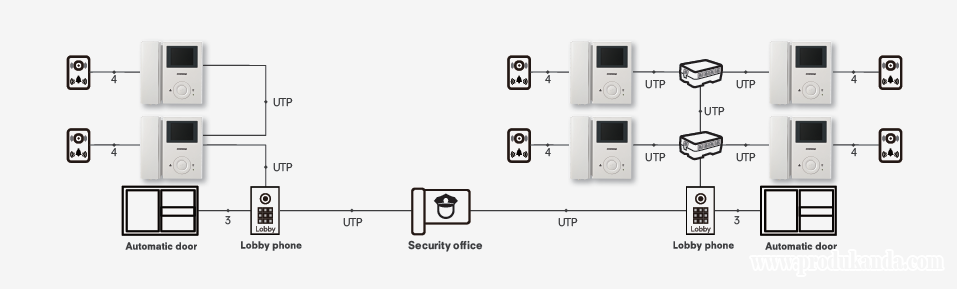

WIRING DIAGRAM
ACCESSORY
| ACCESSORY | CONTENTS | QUANTITY(EA) |
|---|---|---|
| Connector | CONN. 10P×300mm CONN. 4P×300mm |
1 1 |
| Wall bracket | GH1T 4×18 ZnW | 4 |
| Product fixing | PHM 3×6 ZnY | 1 |
| Bracket | 1 |
