FUNCTION
- Monitoring & calling visitors, and releasing door lock (public entrance, individual entrance)
- Releasing door lock(public entrance, individual entrance)
- Paging and calling a security guard station
- OSD function
- Hands-free
SPECIFICATION
- Power source
- AC 100~240V, 50/60 Hz
- LCD size
- 4.3 inch wide color LCD
- Mount type
- Surface-mounted type
- Wiring
- UTP (Cat. 5e)/4-wire for individual door camera
- Dimension(mm)
- 235(W)×140(H)×36(D)

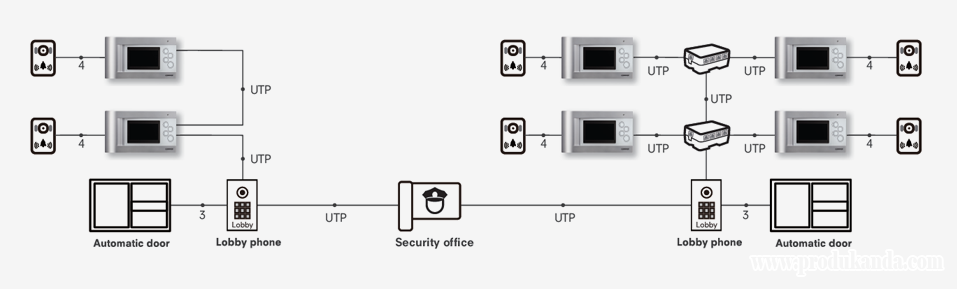

WIRING DIAGRAM
ACCESSORY
| ACCESSORY | CONTENTS | QUANTITY(EA) |
|---|---|---|
| Connector | CONN. 10P×300mm CONN. 4P×300mm |
1 1 |
| Wall bracket | GH1T 4×18 ZnW | 4 |
| Product fixing screw | PHM 3×6 ZnY | 1 |
| Bracket | 1 |
