HOME SECURITY SYSTEM

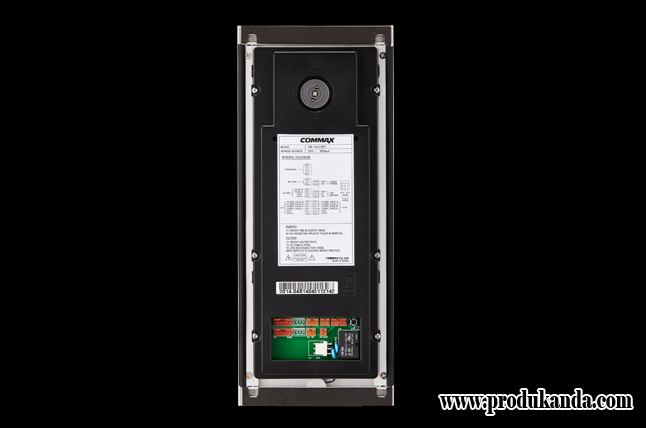

AUDIO PANELDR-2AG/RF1
COMMAX AUDIO GATE SYSTEM IS OPTIMIZED FOR MULTI-COMPLEX APARTMENTS AND BUILDINGS. IT ALSO PROVIDES A SIMPLE INSTALLATION METHOD AND EXPANDABILITY FOR COST-EFFECTIVE IMPLEMENTATION.
-
FUNCTION
· Page and call a household unit or asecurity guard station with various verification methods & name search function
· Expandability Up to 4~1,000 household units (Up to 3 RFID Card registration perhousehold enabled)
· Clear & Bright Information Display Legibility under bright or low light environment via OLED Display
SPECIFICATION
- Power source
- DC 12V, 1A
- Power
- Standby: 400mA,
- consumption
- Maximum: 500mA
- RFID card
- 13.56MHz (Optional)
- Mount type
- Flush-mounted type
- Wiring
- - Lobby phone-to-floor distributor: 1 UTP - Household unit-to-floor distributor: 2 wires (non-polarity)
- Dimension(mm)
- 130(W)×315(H)×10(38)(D)
