FUNCTION
- Monitoring & calling visitors and releasing door lock (public entrance, individual entrance)
- Releasing door lock(public entrance, individual entrance)
- Paging and calling a security guard station
- OSD function
- Hands-free
SPECIFICATION
- Power source
- AC 100-240V, 50/60Hz
- Power consumption
- Standby: 4W, Maximum: 15W
- LCD size
- 7 inch wide color LCD
- Mount type
- Surface-mounted type
- Operating temp.
- 0℃~40℃
- Wiring
- Common: UTP(Cat. 5e) Door camera: 4 wire
- Distance
- Lobby phone: 300m Guard station phone: 1Km
- Dimension(mm)
- 243(W)×168(H)×35(D)

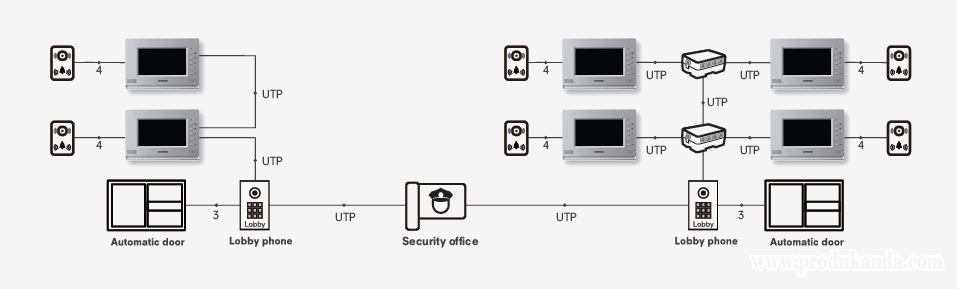

WIRING DIAGRAM
ACCESSORY
| ACCESSORY | CONTENTS | QUANTITY(EA) |
|---|---|---|
| Connector | CONN. 10P×300mm CONN. 4P×300mm |
1 1 |
| Wall bracket | GH1T 4×18 ZnW | 4 |
| Product fixing | PHM 3×6 ZnY | 1 |
| Bracket | 1 |
