FEATURES
-
QUALITY TO STAND
Operating temperature (-30℃~+60℃), Reliable operability in all seasons
-

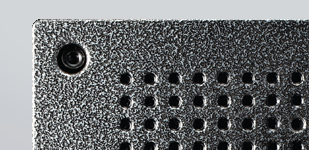

VANDAL-PROOF
Aluminum die-casing housing with vandalproof feature, durability and reliability against rain, wind, dust, and extreme temperature
-

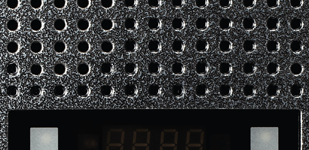

PIN-HOLE CAMERA
Enhanced security by virtually invisible built-in camera application, nice and clean exterior having a camera unit unexposed
-

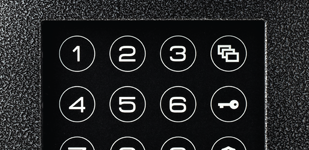

IMPROVED IR SENSOR
Touch recognition ability improved by applying infrared sensor method Water, dust, and dried fingertips have no effects on recognition ability Proximity sensor activated lighting
FUNCTION
- Paging and calling a household unit or a security guard station
- Various verification methods(password and RFID card)
SPECIFICATION
- Power source
- DC 12V, 1A
- Power consumption
- Standby: 200mA, Maximum: 500mA
- Mount type
- Surface-mounted type
- Operating temp.
- -30℃~+60℃
- Wiring
- UTP(Cat. 5e)
- Distance
- Max. 300m VD-103(N)
- RFID card
- 13.56MHz(Optional)
- Image sensor
- C-MOS(Pin-hole type)
- Angle of view
- Horizontal: 47°, Vertical: 35°
- Min. Illumination
- 3 Lux(Up to 300mm from camera to an object)
- Lighting
- Color: white LED×2
- Dimension(mm)
- 136(W)×260(H)×36(D)
- Rain-shield(mm)
- 140(W)×260(H)×65(D)

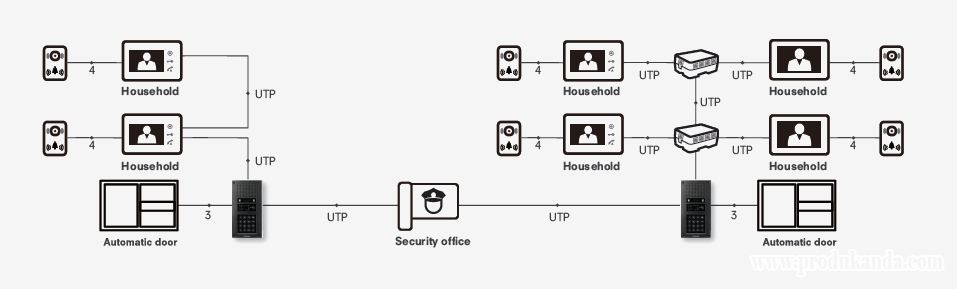

WIRING DIAGRAM
ACCESSORY
| ACCESSORY | CONTENTS | QUANTITY(EA) |
|---|---|---|
| Connector | CONN. 10P×300mm CONN. 3P(3.96)×250mm CONN. 3P×300mm CONN. 4P×300mm |
2 1 1 1 |
| Product fixing screw | Wrench 4×50T/T BK | 4 |
| Wrench | Handle wrench 3# | 1 |
| Rain-shield Bracket | 1 | |
| Anchor bolt | 4 |
