Specifications
| Power Source | 230V AC, 50/60HZ |
|---|---|
| Rated Output | 360W |
| Power Consumption | 350W |
| Frequency Response | 50-18.000 Hz, ± 3 dB |
| Distortion | Less than 0.3% at 1 kHz, 1/3 rated power |
| Inputs ( Sensitivity, Impedance, Connector ) |
MIC 1 : -52dBV (2.5mV), 600Ω, Unbalanced, Equivalent to Phone Jack MIC 2 : -52dBV (2.5mV), 600Ω, Unbalanced, Equivalent to Phone Jack MIC 3 : -52dBV (2.5mV), 600Ω, Unbalanced, Equivalent to Phone Jack AUX 1 : 10dBV (316mV), 10kΩ, Unbalanced, RCA Pin Jack AUX 2 : 10dBV (316mV), 10kΩ, Unbalanced, RCA Pin Jack |
| Outputs Speaker out | Speaker output in screw connector |
| Outputs Direct line | 100V = 28Ω ; 4 - 16Ω = 4 - 16Ω |
| Outputs Speaker Selector | 5 – Zone selector (all zones simultaneously selectable), plug in screw, 1 all call |
| Outputs Pre Out | 0dBV (1.0), 600Ω, Unbalanced, RCA Pin Jack |
| S/N Ratio | Over 65dB (MIC 1 – MIC 3), Over 75dB (AUX 1 – AUX 2) |
| Tone Controls | Bass ± 10 dB at 100 Hz ; Treble ±10 dB at 10kHz |
| Muting | MIC 1 overrides other input signals with 0 – 40dB attenuation by voice switch of MIC 1 input level |
| Indicators | Power LED, Signal LED |

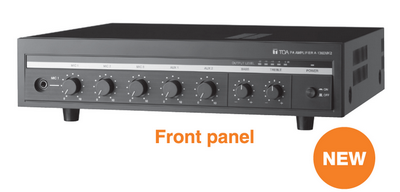

| Finish | Front Panel : ABS Resin, Color Black | Case : Steel Plate, Painting Black |
| Dimensions | 420 (W) x 110 (H) x 384 (D) in mm |
| Weight | 14.6 kg |
| Accessory | AC Power Cord (1 Pc ) |
Notes :
* 0 dB V = 1.0 V
** Specification is measured at the AC voltage of 230V
