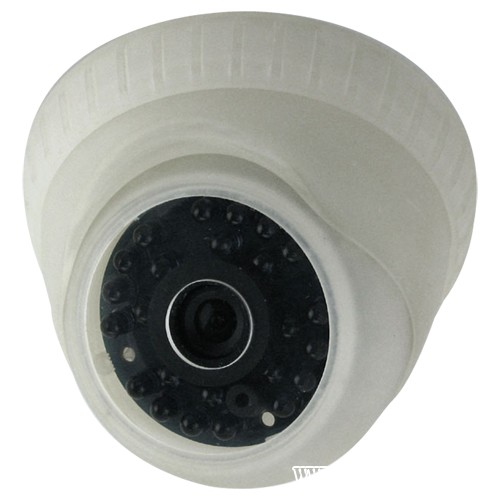

IR Dome Camera
(960H Ultra Resolution)
FEATURES
(1) 1/3" H.R. Color CCD
(2) 700 TVL superior image quality
(3) Low light sensitivity of 0.1 Lux, 0 Lux (IR ON)
(4) Day and night features for 24-hour surveillance
(5) IR effective range up to 15 meters
SPECIFICATIONS*
MODEL AVC153
Pick-up Element 1/3" HR color CCD image sensor
Number of Pixels 976(H) x 494(V) / 976(H) x 582(V)
Resolution 700 TVL
Min. Illumination 0.1 Lux; 0 Lux (IR ON)
IR LED 21 units
IR Effective Range Up to 15 meters
S/N Ratio More than 48dB (AGC OFF)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec.
Lens f3.6 / F2.0
Lens Angle 98.3° (Diagonal) / 76.3° (Horizontal) / 56.2° (Vertical)
IRIS Mode AES
White Balance ATW
Video Output 1.0 Vp-p composite, 75Ω
Operating Temperature 0℃~40℃
Power Source (±10%) DC12V
Current Consumption (±10%) 70mA (IR OFF), 200mA (IR ON)
Dimensions (mm)** 94.1(Ø) × 70.7(H)
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
