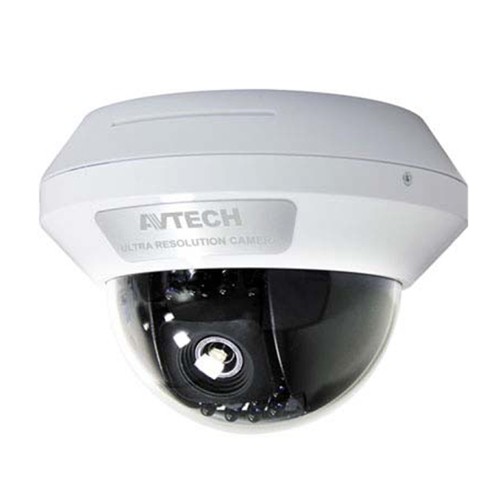

IR Dome Camera
(960H Ultra Resolution)
FEATURES
(1) 1/3" H.R. Color CCD
(2) 700 TVL superior image quality
(3) Low light sensitivity
(4) 3-axis mechanism for flexible ceiling and wall-mount installation
(5) Day and night features for 24-hour surveillance
SPECIFICATIONS*
MODEL AVC163
Pick-up Element 1/3" HR color CCD image sensor
Number of Pixels 976(H) x 494(V) / 976(H) x 582(V)
Resolution 700 TVL
Min. Illumination 0.1 Lux; 0 Lux (IR ON) 0.05 Lux; 0 Lux (IR ON)
IR LED 12 units
IR Effective Range Up to 10 meters Up to 15 meters
S/N Ratio More than 48dB (AGC OFF)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec.
Lens f3.6mm / F2.0 f3.8mm / F1.5
Lens Angle 98.3° (Diagonal) / 76.3°
(Horizontal) / 56.2° (Vertical)
65.4° (Diagonal) / 49.9°
(Horizontal) / 80.4° (Vertical)
IRIS Mode AES
White Balance ATW
AGC Auto
Video Output 1.0 Vp-p composite, 75Ω
Operating Temperature 0℃~40℃
Power Source (±10%) DC12V
Current Consumption (±10%) 70mA (IR OFF), 200mA (IR ON)
Dimensions (mm)** 131(Ø) × 95(H)
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
