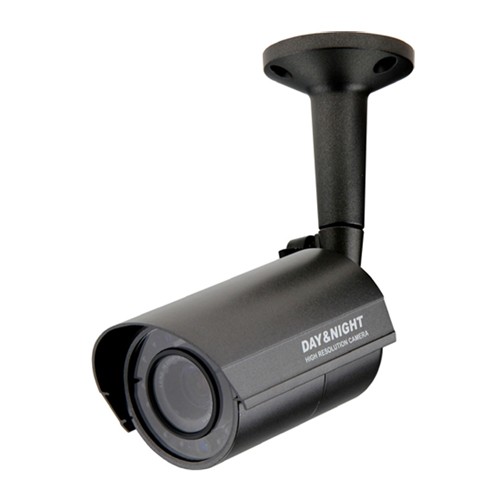

H.R. IR Camera
FEATURES
(1) 1/3" H.R. Image sensor
(2) f3.8 ~ f9.5mm vari-focal lens
(3) Low light sensitivity of 0.1Lux at F2.0
(4) IR effective range up to 15 meters for night surveillance
(5) True Day & Night surveillance with IR shift
(6) Weather-proof housing design
SPECIFICATIONS*
MODEL KPC172
Pick-up Element 1/3" H.R. Image sensor
Number of Pixels 728(H) x 488(V)
Min. Illumination 0.1Lux (15 IRE) / F2.0; 0 Lux (IR ON)
Resolution Super high resolution
IR LED 12 units
IR Effective Distance Up to 15 meters
S/N Ratio More than 48dB (AGC off)
Electronic Shutter 1/60 (1/50) to 1/900,000 sec.
Lens f3.8mm ~ f9.5mm
Lens Angle 85.4° ~ 36°
White Balance ATW
AGC Auto
IRIS Mode AES
IP Rating IP66
Video Output 1.0 Vp-p composite, 75Ω
Operating Temperature -10°C~40°C
Power Source (±10%) DC12V
Current Consumption (±10%) 63.5mA(IR OFF), 170mA (IR ON)
Dimensions (mm)** 60(H) x 97(Φ)
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
