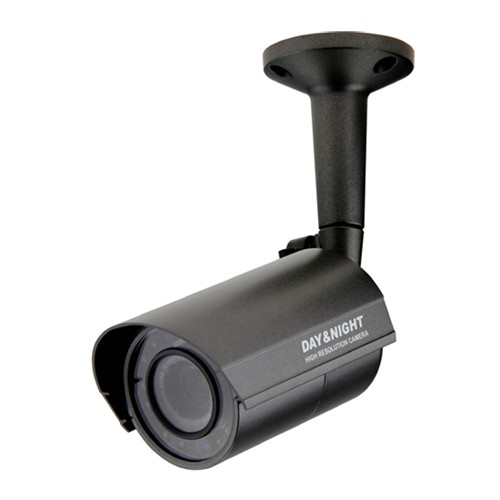

17 IR LEDs IR Camera
(960H Ultra Resolution)
FEATURES
(1) 1/3" H.R. Image sensor
(2) f3.8 ~ f9.5mm vari-focal lens
(3) 700 TVL superior image quality
(4) IR effective range up to 15 meters for night surveillance
(5) Weather-proof housing design
SPECIFICATIONS*
MODEL AVC167
Pick-up Element 1/3" H.R. Color CCD image sensor
Number of Pixels 976(H) x 494(V) / 976(H) x 582(V)
Resolution 700 TVL
Min. Illumination 0.1 Lux; 0 Lux (IR ON)
IR LED 17 units
IR Effective Range Up to 15 meters
S/N Ratio More than 48dB (AGC OFF)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec.
Lens f3.8mm ~ f9.5mm
Lens Angle
Wide: 71.4° (Horizontal) / 52° (Vertical) / 92.8° (Diagonal)
Tele: 31.8° (Horizontal) / 23.9° (Vertical) / 39.8° (Diagonal)
White Balance ATW
AGC Auto
IRIS Mode AES
IP Rating IP66
Video Output 1.0 Vp-p composite, 75Ω
Operating Temperature -10℃~40℃
Power Source (±10%) DC12V
Current Consumption (±10%) 70mA(IR OFF), 220mA (IR ON)
Dimensions (mm)** 97(Ø) × 60(H)
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
