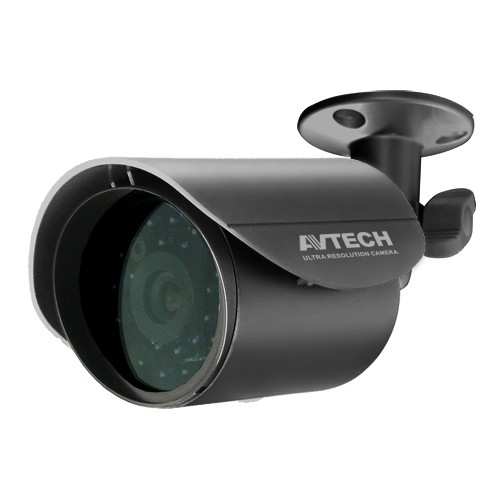

21 IR LEDs Camera
(960H Ultra Resolution)
FEATURES
(1) 1/3" H.R. Color CCD image sensor
(2) 700 TVL superior image quality
(3) Low light sensitivity of 0.1 Lux, 0Lux (IR ON)
(4) IP67, suitable for outdoor use
(5) Day and night features for 24-hour surveillance
SPECIFICATIONS*
MODEL AVC158
Pick-up Element 1/3" H.R. Color CCD image sensor
Number of Pixels 976(H) x 494(V) / 976(H) x 582(V)
Resolution 700 TVL
Min. Illumination 0.1 Lux / F2.0, 0Lux (IR ON)
IR LED 21 units
IR Effective Range Up to 15 meters
S/N Ratio More than 48dB (AGC OFF)
Electronic Shutter 1/60 (1/50) to 1/100,000 sec.
Lens f3.6mm / F2.0
Lens Angle (Horizontal) 76.3° / (Vertical) 56.2°/ (Diagonal) 98.3°
IRIS Mode AES
White Balance ATW
IP Rating IP67
Video Output 1.0 Vp-p composite, 75Ω
Startup Temperature 0℃~40℃
Operating Temperature -20℃~40℃
Power Source (±10%) DC12V
Current Consumption (±10%) 70mA (IR OFF), 270mA (IR ON)
Dimensions (mm)** 60(Φ) x 90.13(L)
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
