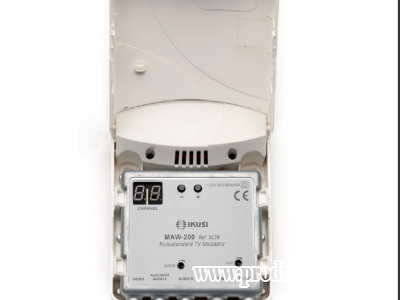

ntent="Ikusi MAW-200 Analogue Modulator" lang="en" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">

ntent="Ikusi MAW-200 – Analogue modulator – top of the range quality , Made in Spain. " lang="en" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">

ntent="Appropriate use with TV satellite receivers, VCR’s and video cameras. -Direct video/audio modulation. Multistandard. Mono sound. DSB (Double Side-Band) TV output channel. -Agile selection of channel. Possibility of shifting the standard video carrier frequency up to ±2.5 MHz. - Possible connection of stereo sound sources. L and R signals are summed. JJ Built-in test pattern generator. JJ Two buttons and one 2-digit LED display for selection and programming of operating parameters. JJ Panel potentiometers for audio modulation and RF output level settings. JJ Input port for RF coupling of antenna/SMATV signal. JJ External plastic box. Indoor mounting. Wall fixing by two screws. JJ Insertable mains lead. AC power indicator. JJ Interfacing kit CVA-002 available. MAW-200 Output TV Channel Frequency MHz 47 – 84, 174 – 300, 470 – 862 Selectable TV System B, G, H, D, K, I, L, M, N Output Channel Spectrum Double Side-Band Audio operation mode Mono RF coupling frequencies MHz 45 – 2150 (TV+SAT) Fine tuning of video carrier frequency MHz ±2.5 MHz (steps of 0.25 MHz) Adjustable output level dBμV 65 – 85 Switchable carrier level ratio dB 12 ±3/16 ±3 Video input level Vpp 0.9 – 1.1 Video input impedance Ω 75 Audio input level mV 150 – 775 Audio input impedance kΩ 10 Adjustable audio peak deviation kHz ±50 RF coupling loss dB < 1.5 (TV), < 2.7 (SAT) Mains voltage Vac 230 – 240 Consumption W 3 Dimensions mm 120 x 82 x 34" lang="en" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">

ntent="new" lang="en" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">







ntent="white" lang="en" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">

ntent="MAW200" datatype="xsd:string" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">

ntent="MAW-200" datatype="xsd:string" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">

ntent="MAW-200" datatype="xsd:string" style="border: 0px; margin: 0px; padding: 0px; vertical-align: baseline; background: transparent;">
